HowTo Schema Markup Setup Guide

Want your step-by-step tutorials or guides to appear as interactive rich results in Google Search or be properly understood by AI tools and assistants? Adding HowTo Schema Markup is the perfect solution. This guide will show you how to add HowTo Schema using the Schema Package WordPress plugin to boost SEO, enhance AI visibility, and improve user engagement.

What Is HowTo Schema Markup?

HowTo Schema Markup is a structured data format defined by Schema.org that tells search engines and AI platforms your content is a step-by-step instructional guide — complete with steps, images, estimated time, and tools required.

With HowTo Schema, your content can appear in:

  • Google rich results with step-by-step cards, images, and summaries
  • AI-generated answers (e.g., Google SGE, Bing Copilot, ChatGPT)
  • Voice assistant instructions
  • Featured snippets and instructional search queries

📘 Read Google’s official documentation here:
👉 Google HowTo Structured Data Guidelines

Why Use HowTo Schema?

Using HowTo Schema improves:

✅ Search Appearance: Show up in Google with rich, interactive HowTo panels
✅ AI Comprehension: AI tools understand and surface your tutorials in answers
✅ Increased Engagement: Step-by-step visibility drives more clicks and time on site
✅ Voice-Friendly: Structured steps make it easier for voice assistants to deliver your content

When Should You Use HowTo Schema?

Use HowTo Schema for:

  • Step-by-step guides
  • DIY tutorials
  • Instructional blog posts
  • Repair, setup, or cooking instructions

⚠️ Don’t use HowTo Schema for FAQs, checklists, listicles, or unordered tips — it’s meant for ordered, actionable steps.

How to Set Up HowTo Schema in WordPress (Using Schema Package Plugin)

You can add HowTo Schema using two flexible methods in the Schema Package plugin:

✅ Method 1: Apply HowTo Schema Automatically (Global Setup)

  1. Navigate to Schema Package Dashboard → Singular Tab

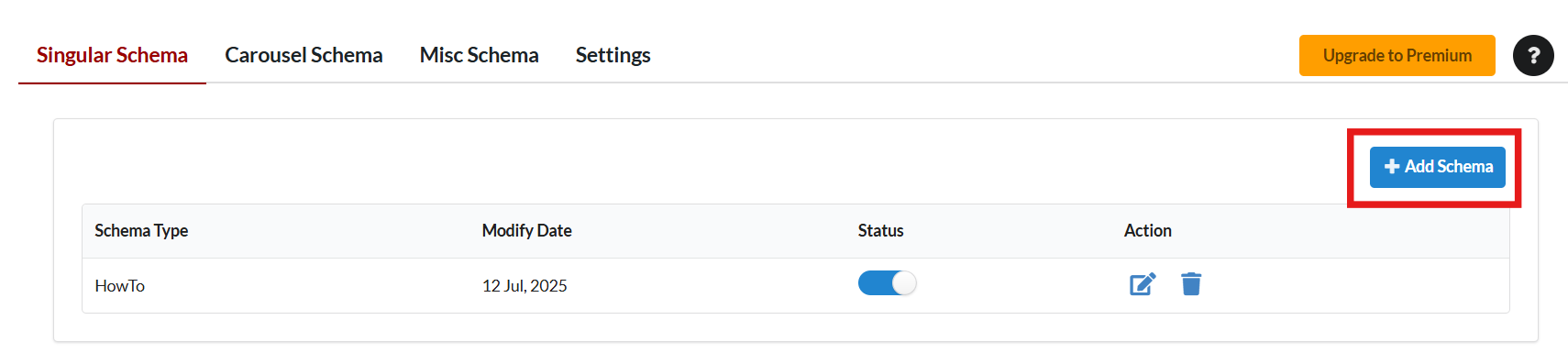

  2. Click Add Schema

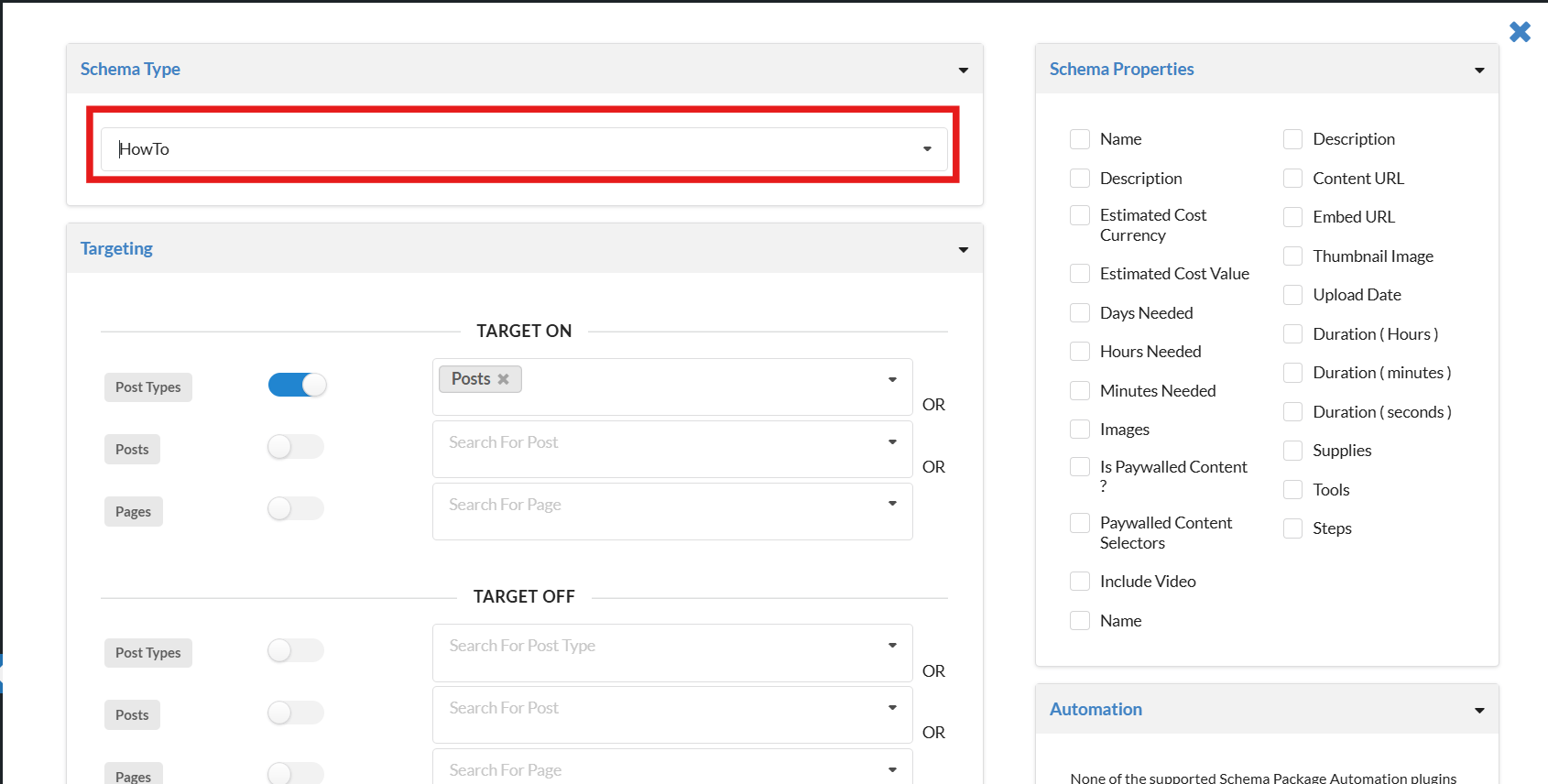

  3. Select Schema Type: HowTo

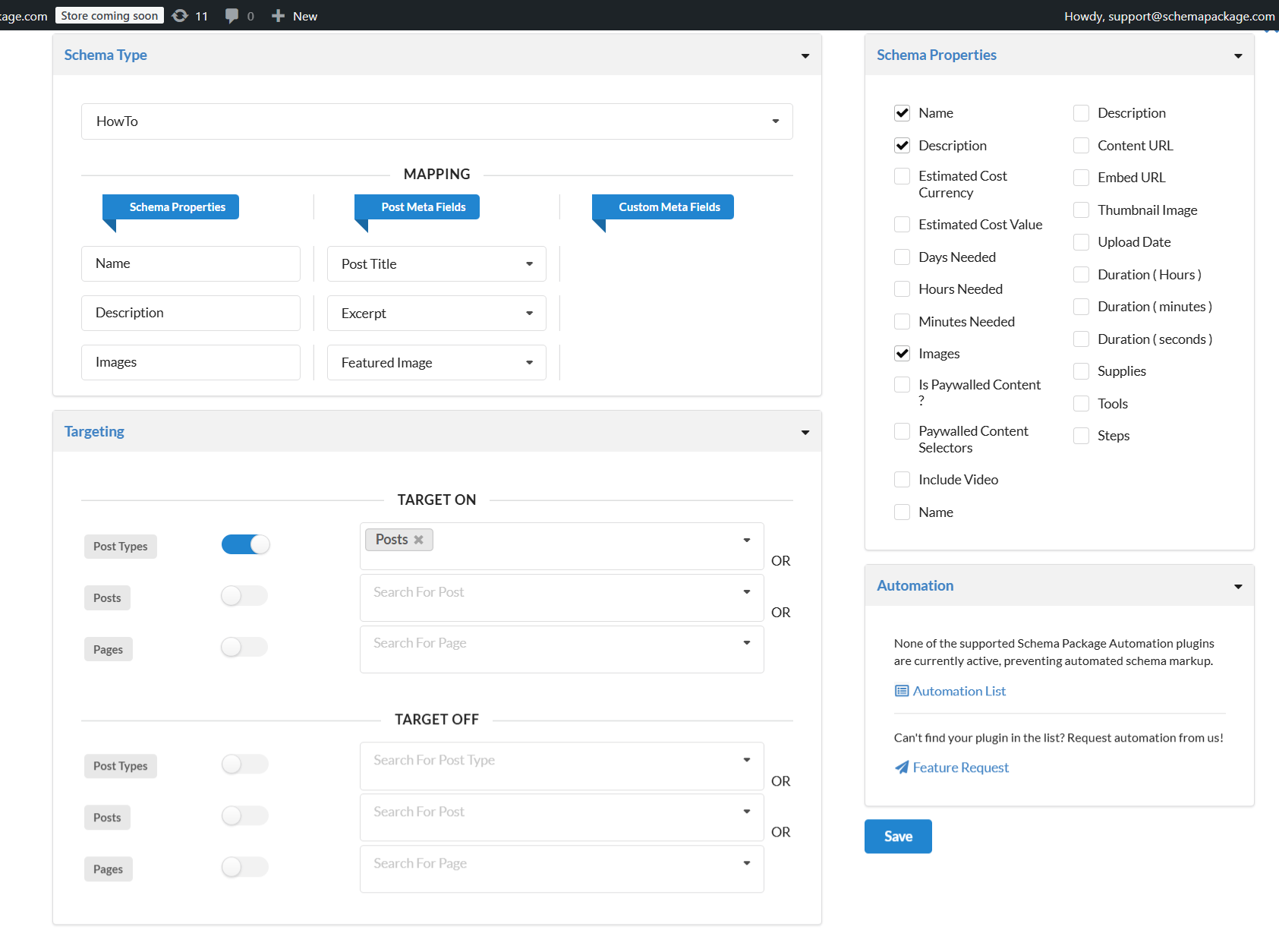

  4. Set Targeting Rules (e.g., Post Type = Posts or Tutorials)
  5. Map the following fields (if using ACF or custom fields):
    • name → Post Title
    • description → Post Excerpt or Custom Field
    • image → Featured Image
    • totalTime → Custom Field (e.g., PT30M for 30 minutes)
    • supply → Custom Field or comma-separated list
    • tool → Custom Field or list
    • step → Repeater field with each step (instruction + image + URL if needed)
  6. Click Save to apply the schema

💡 Note: Mapping is useful when you use a structured format (like ACF or custom fields) for tutorial content. If you write guides manually, prefer the manual method below.

✅ Method 2: Add Schema Manually Per Post (Schema Package Generator)

Best for posts that contain custom or unique tutorials.

  1. Open the desired post or page in the WordPress editor

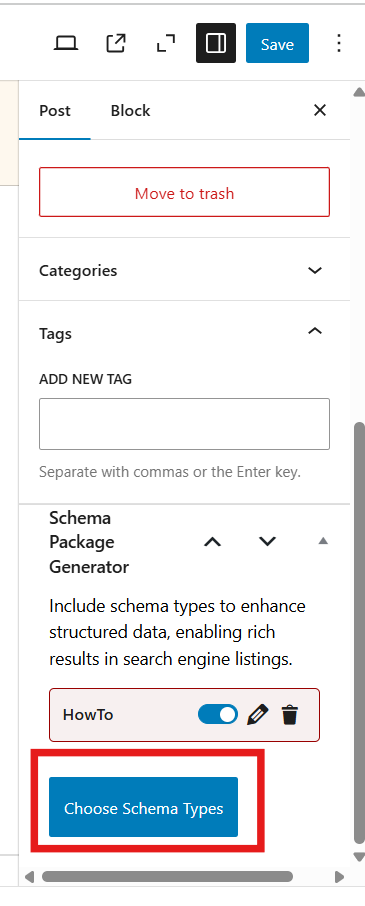

  2. Scroll to the Schema Package Generator section

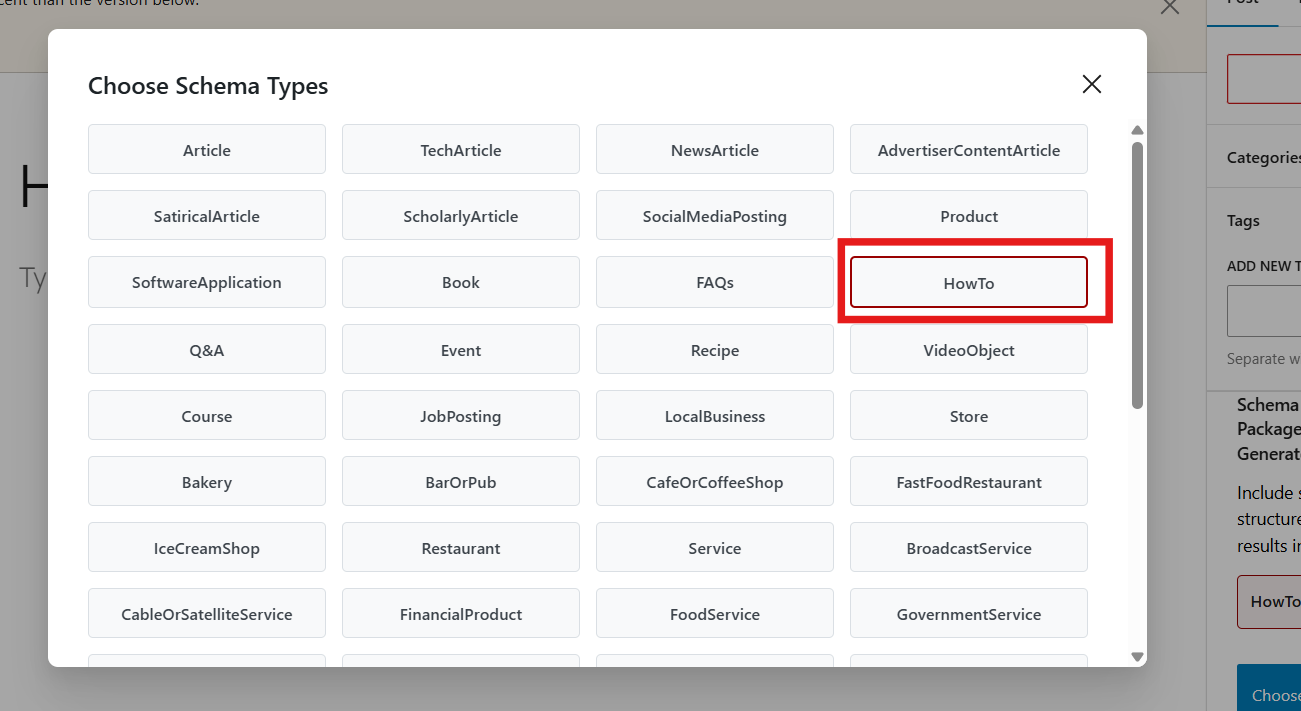

  3. Click Choose Schema Type → Select HowTo from the list

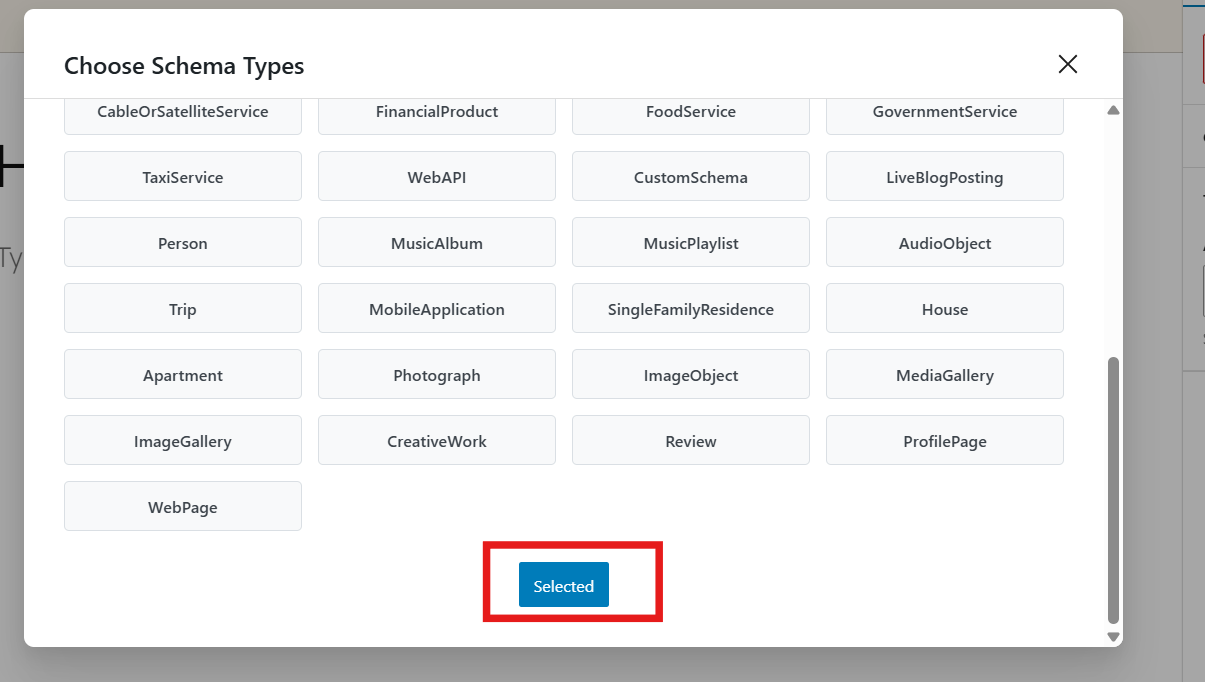

  4. Click the Select button to add the HowTo schema

  5. Click the Edit icon to open the schema editor

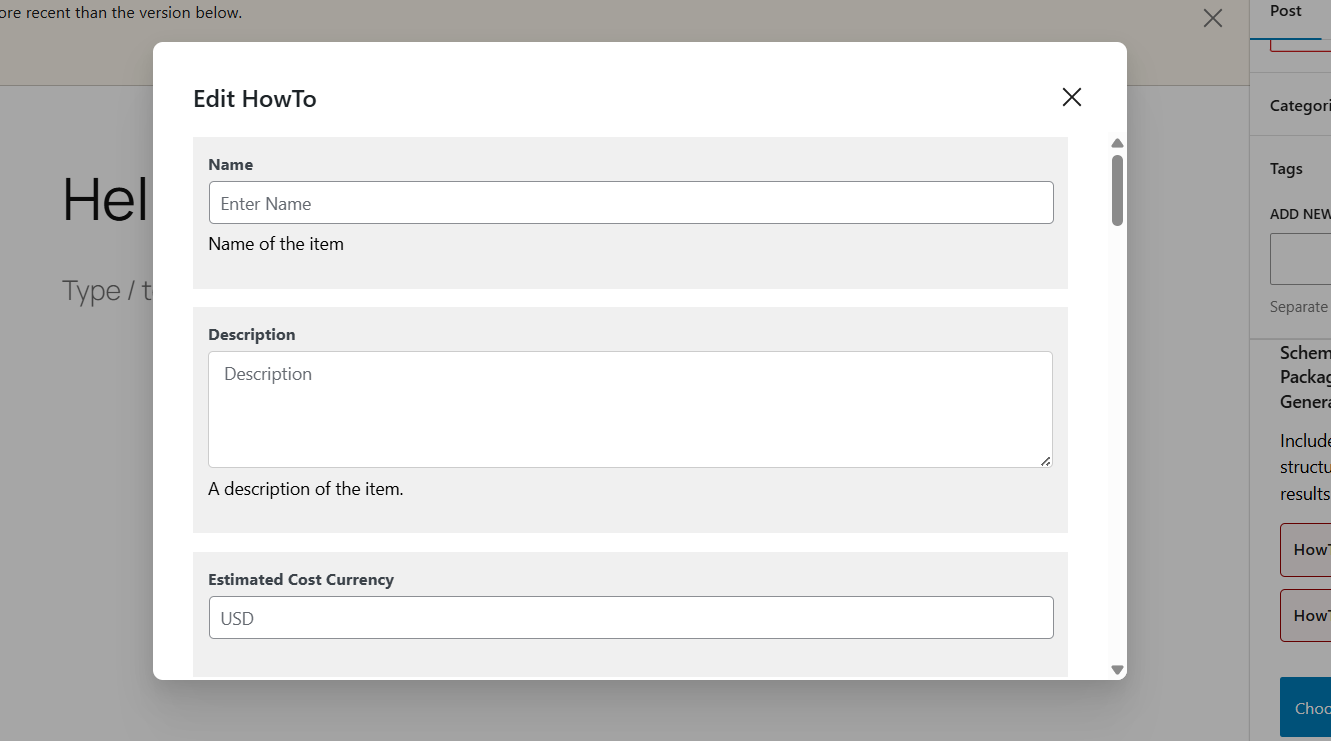

  6. Fill out the schema fields:
    • Name — Title of the tutorial
    • Description — A summary of what the guide explains
    • Image — Primary image that represents the guide
    • Total Time — e.g., PT15M (15 minutes) or PT1H30M (1.5 hours)
    • Supplies — Items needed (e.g., “Fabric, Thread”)
    • Tools — Tools used (e.g., “Sewing Machine”)
    • Steps — Add each step individually:
      • Step name/title
      • Step description
      • Optional image per step

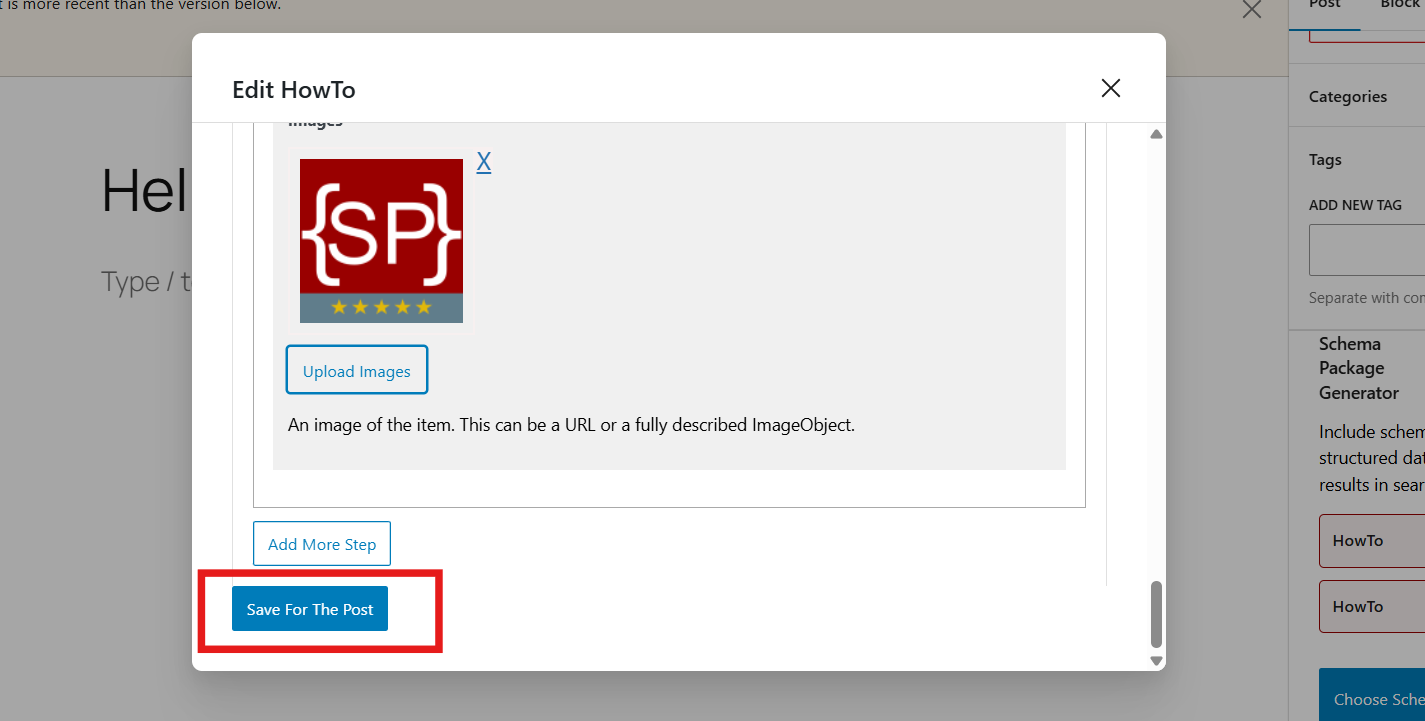

  7. Click Save for Post, then Update the post

⚠️ Note: Only include HowTo schema if your guide is clearly visible and structured on the page with matching step-by-step content.

Test Your HowTo Schema Markup

Once added, test your structured data to ensure it’s valid and eligible for Google’s HowTo rich results:

Paste your post URL or code to validate the structured output.

Common Issues & Fixes

🛠️ Missing visible content — All steps must be clearly visible on the actual page
🛠️ Wrong format for time — Use ISO 8601 format (e.g., PT30M, PT1H)
🛠️ Incomplete steps — Provide meaningful instructions and avoid empty or vague steps
🛠️ Don’t mark up recipes — Use Recipe Schema for cooking instructions

Final Thoughts

By using HowTo Schema with the Schema Package plugin, you give your guides a serious SEO boost and future-proof them for AI and voice assistant discovery. Whether it’s a DIY project, repair tutorial, or workflow walkthrough — structured data ensures your steps are understood and shown the right way.

Structured data isn’t just for search — it’s the language of smart technology.

👉 Start using HowTo Schema today to maximize your content’s visibility and usefulness in both search engines and AI platforms.
